(Including GST)

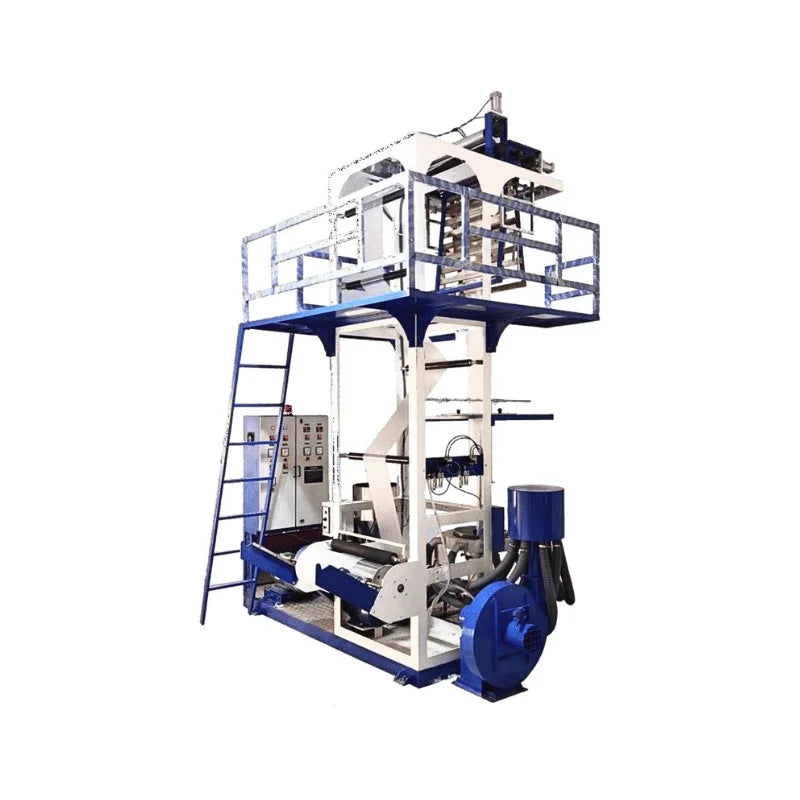

Description
xFeatures
- Unique design to suit various materials like HM, HDPE, LDPE, LDPE &
Biodegradable polymers. - Output range starting from 25 kgs/hr. To up to 200 kgs/hr.
- Grooved feed type nitride screw & barrels Nitride screw-barrel made of special alloy steel (en-41b Moscow) for Longer life.
- Helical gear box with integral thrust bearing with the lubrication is Through oil
splashing. - Candle type filter provided no need to disturb the die or extruder While changing the filter net.
- Single station / two stations type surface winder Uniquely designed spiral type
of die (monolayer, two-layer & three Layer) suitable for hi- HDPE materials &
LDPE-LDPE & biodegradableMaterials. - Uniquely designed air-cooling ring for higher output High-velocity air ring blower
with ac inverter drive Bubble calibrating basket/iris ring. - Universal gusseting arrangement.
- Embossing roller attachment Centre & side slitting arrangement. High-
- density ceramic type band heaters Ssr / contactor based on all heating zones.
- All ac motors operated by ac frequency drive Compact dimensions to result in
minimum space requirement. - Rotating die or vertical type oscillating haul-off unit for gauge Randomization.
- Machine output can vary (+ -) 8 to 10 % depending on materials and Melt index,
bulk density, hardness, coefficientoffriction, andshapesof pallets.
| Model |
35 MM | 40 MM | 45 MM | 55 MM | 65 MM |
| HM/HDPE/ LDPE/Bio/LD |
HM/HDPE/ LDPE/Bio/LD |
HM/HDPE/ LDPE/Bio/LD |
HM/HDPE/ LDPE/Bio/LD |
HM/HDPE/ LDPE/Bio/LD |
HM/HDPE/ LDPE/Bio/LD |
| Screw Dia | 35 MM | 40 MM | 45 MM | 55 MM | 65 MM |
| Barrel Feed Type | Groove Feed | Groove Feed | Groove Feed | Groove Feed | Groove Feed |
| Bag Film Width Range Film | 100 to 400 MM | 150 to 550 MM | 150 to 700 MM | 250 to 800 MM | 380 to 1200 MM |
| Thickness Range Screen | 10 to 100 Micron | 10 to 100 Micron | 12 to 100 Micron | 12 to 100 Micron | 20 to 100 Micron |
| Tower Height | 10-12 Feet | 10-13 Feet | 12-14 Feet | 14-17 Feet | 16-20 Feet |
| Machine Nip roller size | 22 "Inch | 26"Inch | 32"Inch | 36"Inch | 52" Inch |
| Die Type | Stationary Die | Stationary Die | Stationary Die | Stationary Die | Stationary Die |
| Winder Station Type Machine &Main Drive - Delta make AC Drive |
Single station with 1 HP motor & drive |
Single station with 1 HP motor & drive |
Single station with 1 HP motor & drive |
Single station with 1 HP motor & drive |
Single station with 1 HP motor & drive |
| Connecting Load | 21 Kw ( 28 HP ) | 29 Kw ( 39 HP ) | 32KW (42 HP) | 38KW (50 HP) | 53KW (70 HP) |
| Maximum Output | 25 to 30 Kg/Hr. | 30 to 40 Kg/Hr. | 35-50Kg/Hr. | 0-65Kg/Hr. | 70-80Kg/Hr. |
| Main Motor | 7 HP ABB Brand | 10 HP ABB Brand | 15 HP ABB Brand | 20 HP ABB Brand | 25 HP ABB Brand |
| Air Blower | 3 HP | 3 HP | 5 HP | 7.5 HP | 7.5 HP |

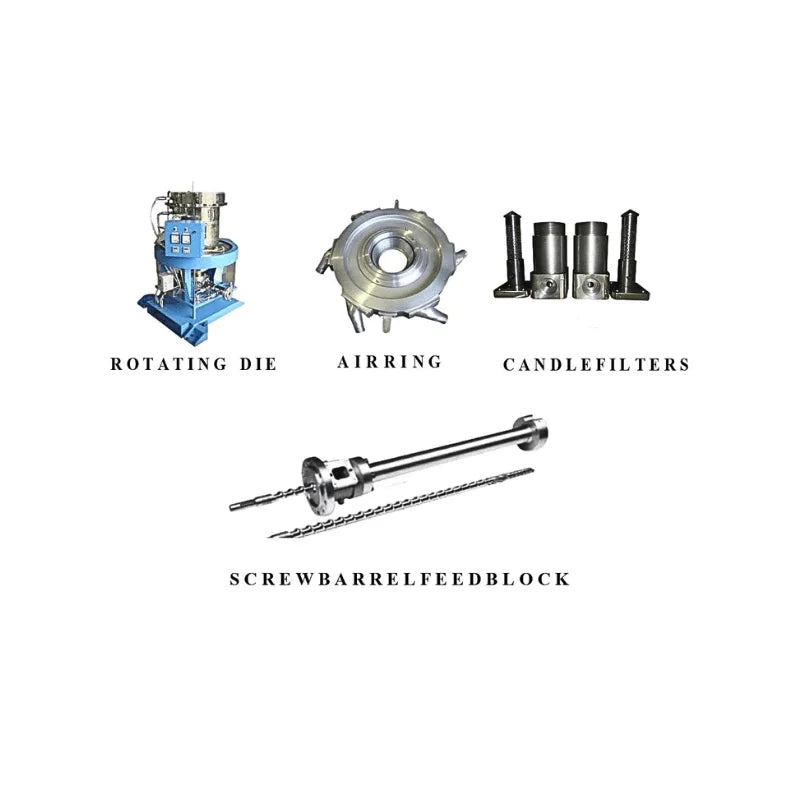

Optional Attachments
1. Rotating Die Unit 360-degree Rotation.
2. HD / LD / HM Die
3. Double Station Winder
4. PLC Panel.
